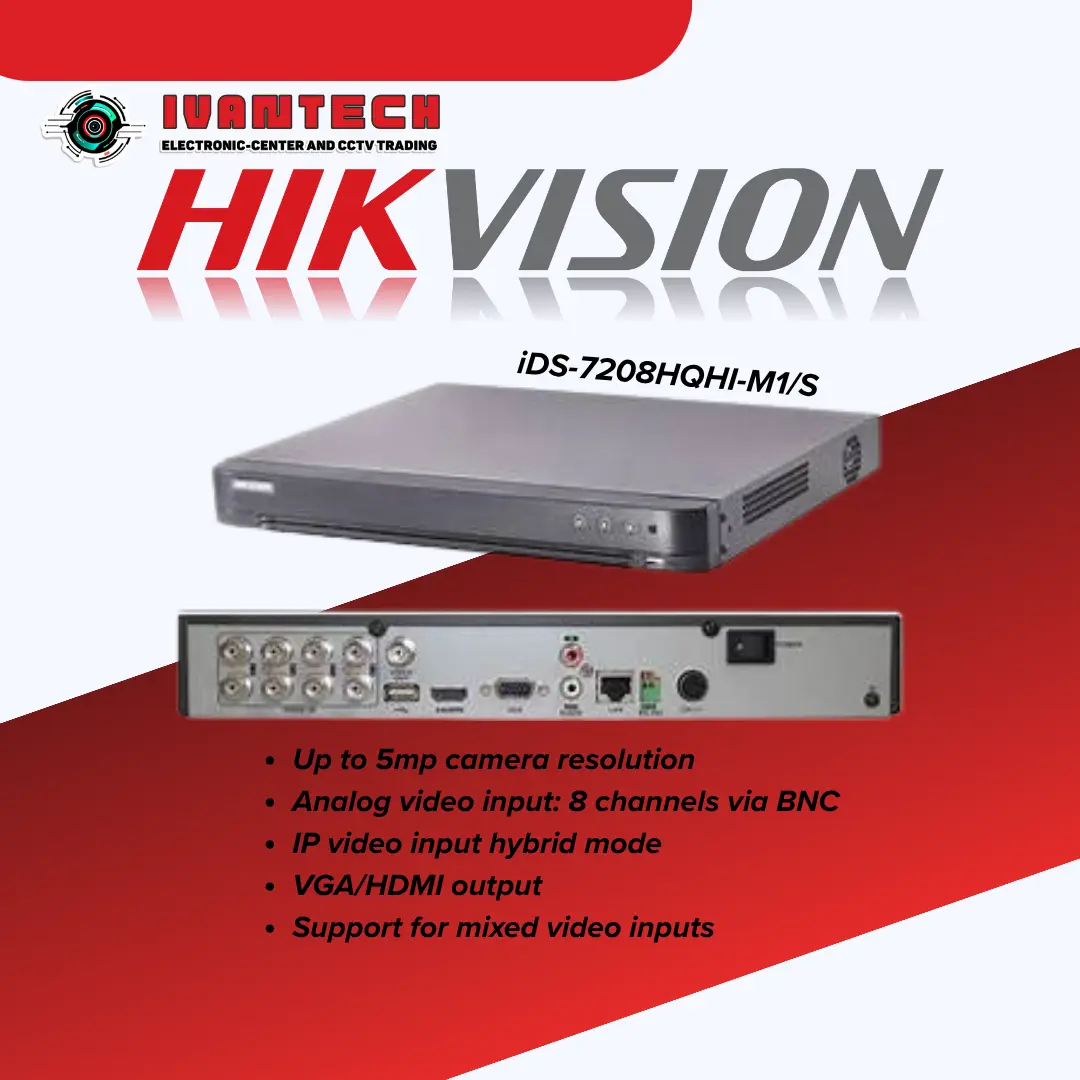

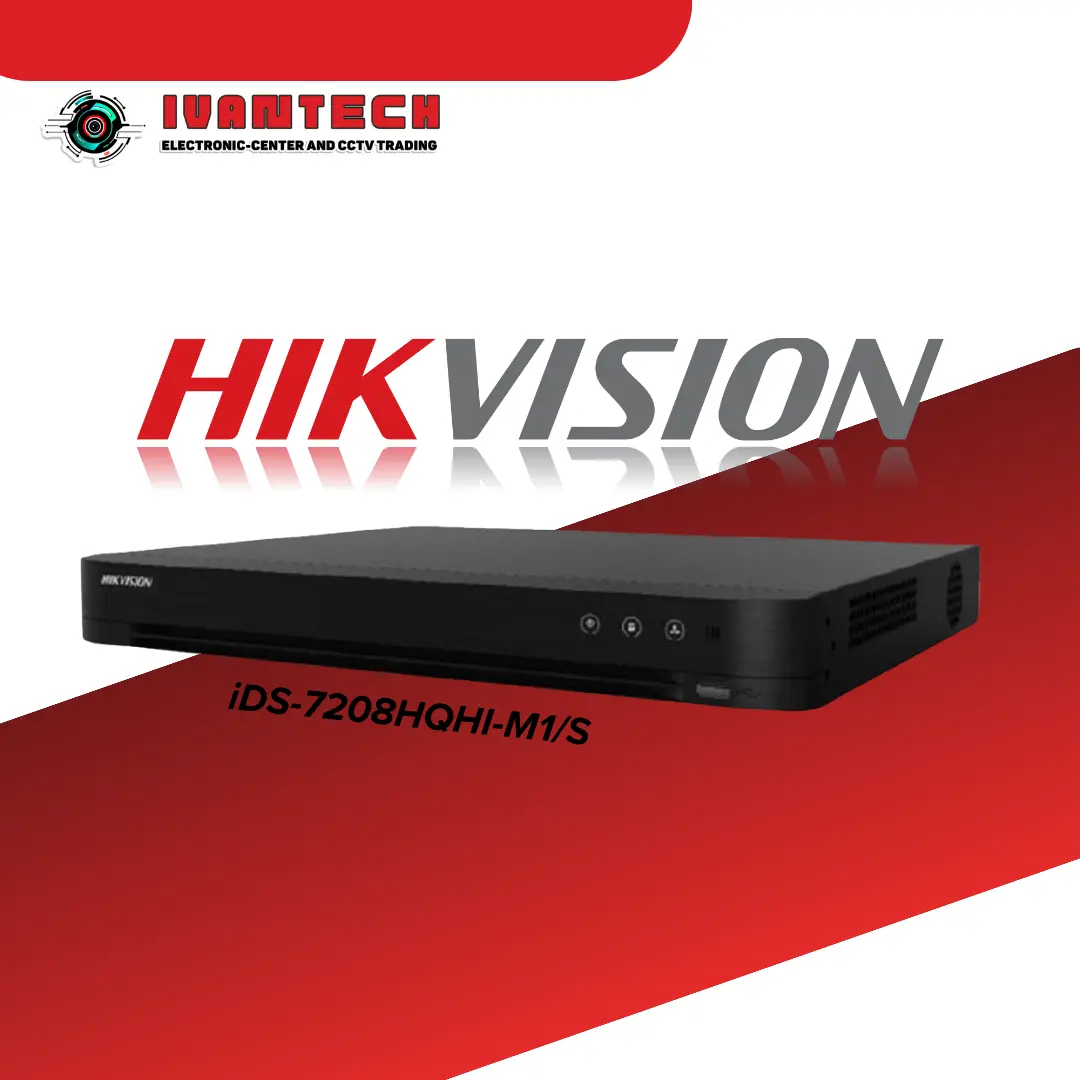

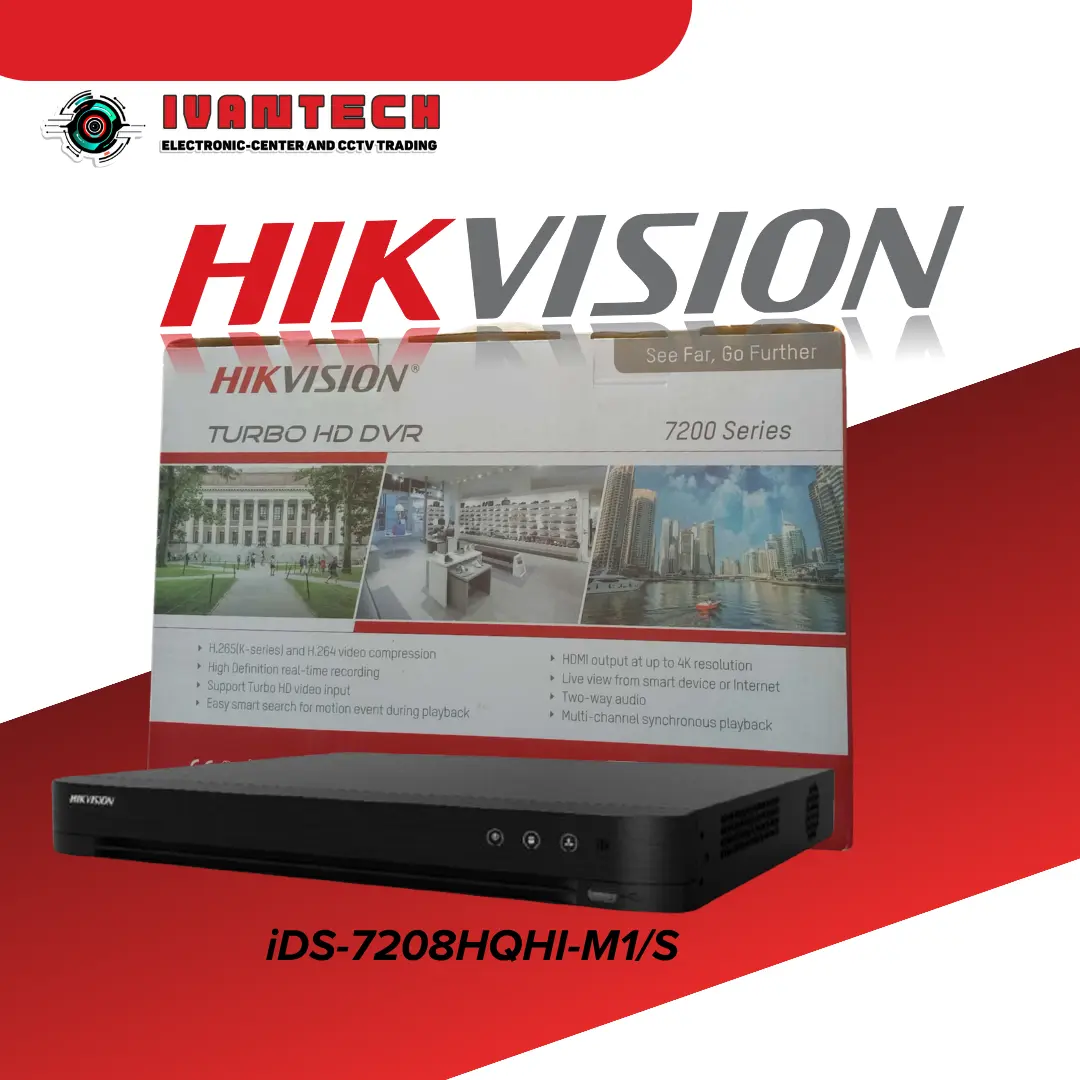

Hikvision iDS-7208HQHI-M1/S 8CH Turbo HD DVR – 1080p AcuSense Recorder

The Hikvision iDS-7208HQHI-M1/S is a high-performance 8-channel Turbo AcuSense DVR built for modern surveillance systems. Designed for both analog (HDTVI/AHD/CVI/CVBS) and IP camera integration, it brings advanced deep learning capabilities, efficient compression, and flexible recording options to meet both residential and commercial security needs.

Key Features & Highlights

Deep Learning Motion Detection 2.0
Automatically classifies humans vs. vehicles on analog channels to reduce false alarms (e.g. prevent triggering on leaves, lights, animals).

Perimeter Protection (Line Crossing / Intrusion)
Supports advanced perimeter analytics for up to 4 channels.

Facial Detection & Face Search
Can detect faces and support face picture search across recorded footage.Router-

Hybrid Video Input (Analog + IP)
• 8 analog channels via BNC (1.0 Vp-p, 75 Ω)

• Default 2-channel IP support (up to 10 channels total)

• Enhanced IP mode: 4 IP channels (up to 12 total)

High Resolution & Encoding
• Analog (HDTVI) input up to 3K / 5 MP / 4 MP / 1080p / 720p (various fps depending on mode)

• Supports both 1080p Lite mode and full mode (3K lite / 5 MP lite / 4 MP lite / 1080p etc.)

• Main-stream and sub-stream settings for flexible bandwidth usage

Video Compression
H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264, enabling better storage efficiency.

Network & Remote Access
• 96 Mbps total throughput

• Supports Hik-Connect, DDNS, ONVIF, HTTPS, TCP/IP, etc.

• Remote connections up to 64 clients

Storage & Backup
• 1 × SATA interface, up to 10 TB HDD capacity

• USB ports (2 × USB 2.0) for backup or USB storage
• 1 channel RCA audio input (2.0 Vp-p, 1 KΩ) + support via coax for analog channels

• 1 channel RCA audio output (linear)

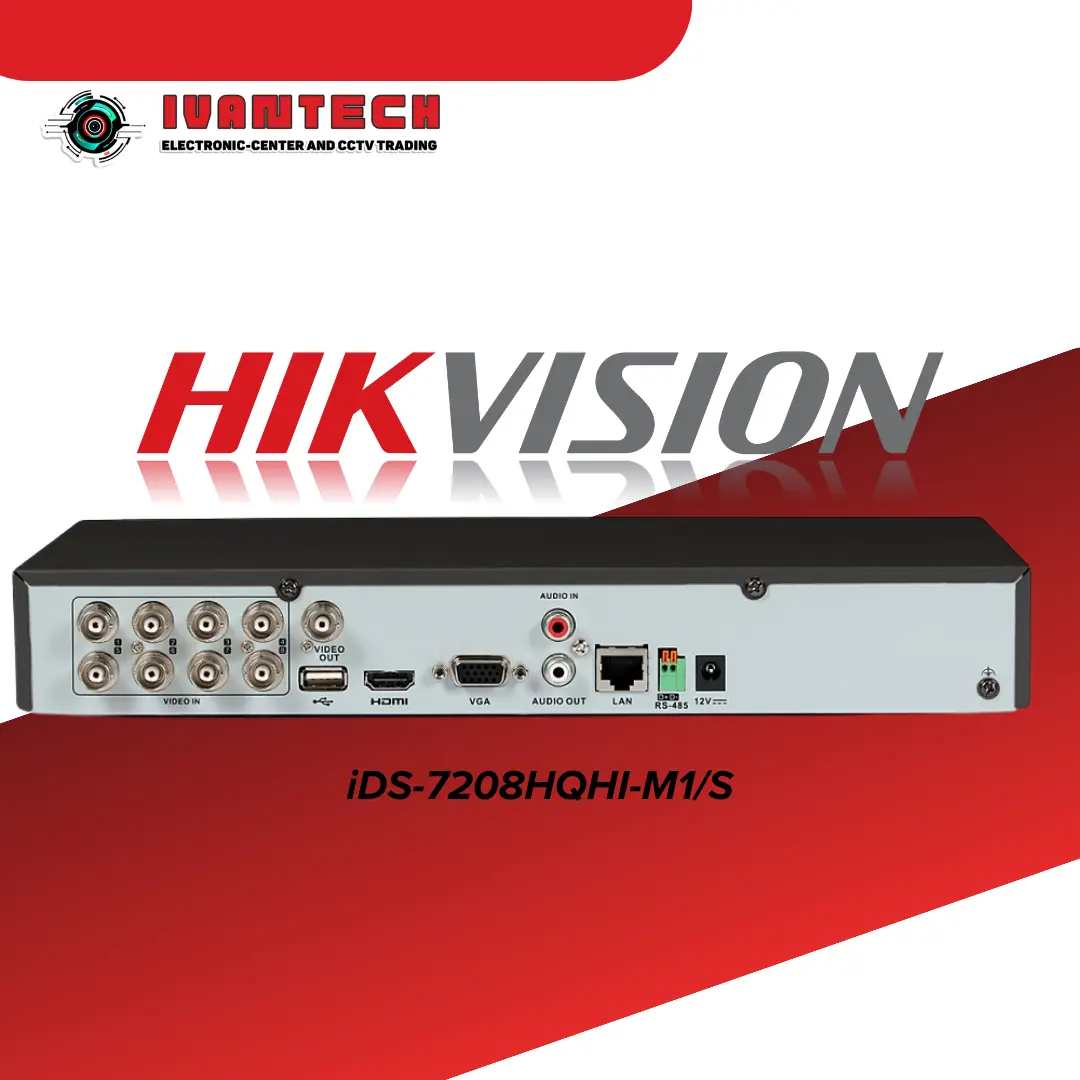

Outputs & Interfaces
• HDMI (1) — resolutions: 1920×1080, 1280×1024, 1280×720
• VGA (1) — same resolutions
• CVBS output (BNC) for legacy monitor support
Power & Environmental
• 12 VDC power supply
• ≤ 18 W power consumption (without HDD)

Operating temp: –10 °C to +55 °C; humidity: 10%–90%

• Dimensions: ~315 × 242 × 45 mm; ≤ 1.78 kg

Smart Functionality & Search
• Smart search by object / event type (e.g. human, vehicle)

• Support for multiple VCA (Video Content Analytics) events

• Output bandwidth limit can be configured to manage network constraints

Frequently Asked Questions (FAQs)

Q: Does the unit come with a hard drive preinstalled?
A: No, the iDS-7208HQHI-M1/S is sold without HDD. You’ll need to supply your own SATA hard drive (up to 10 TB) for storage.

Q: Can I connect IP cameras to it?
A: Yes. The device supports hybrid mode — by default 2 IP channels (up to 10 total), and in Enhanced IP mode, 4 IP channels (up to 12) alongside its 8 analog channels.

Q: Will it reduce false motion alarms?
A: Yes. Its built-in deep learning Motion Detection 2.0 can distinguish human / vehicle motion from irrelevant movement (like leaves or lighting changes), reducing false positives.

Q: What is the maximum recording resolution on analog channels?
A: When the 1080p Lite mode is not enabled, the analog channels can record up to 3K lite, 5 MP lite, 4 MP lite, 1080p, 720p, and more depending on settings.

Q: How many remote connections can I have?
A: Up to 64 simultaneous remote connections via network.
