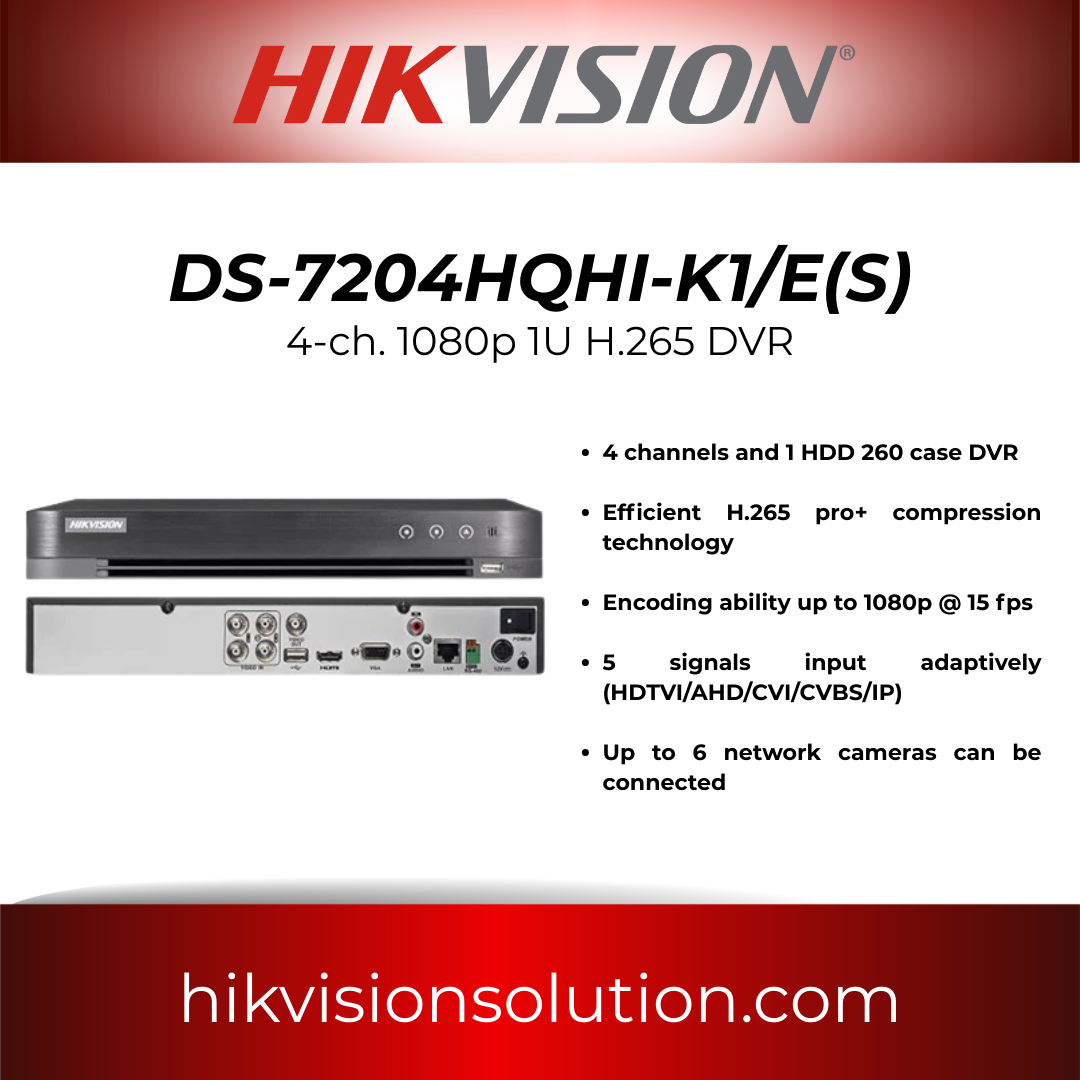

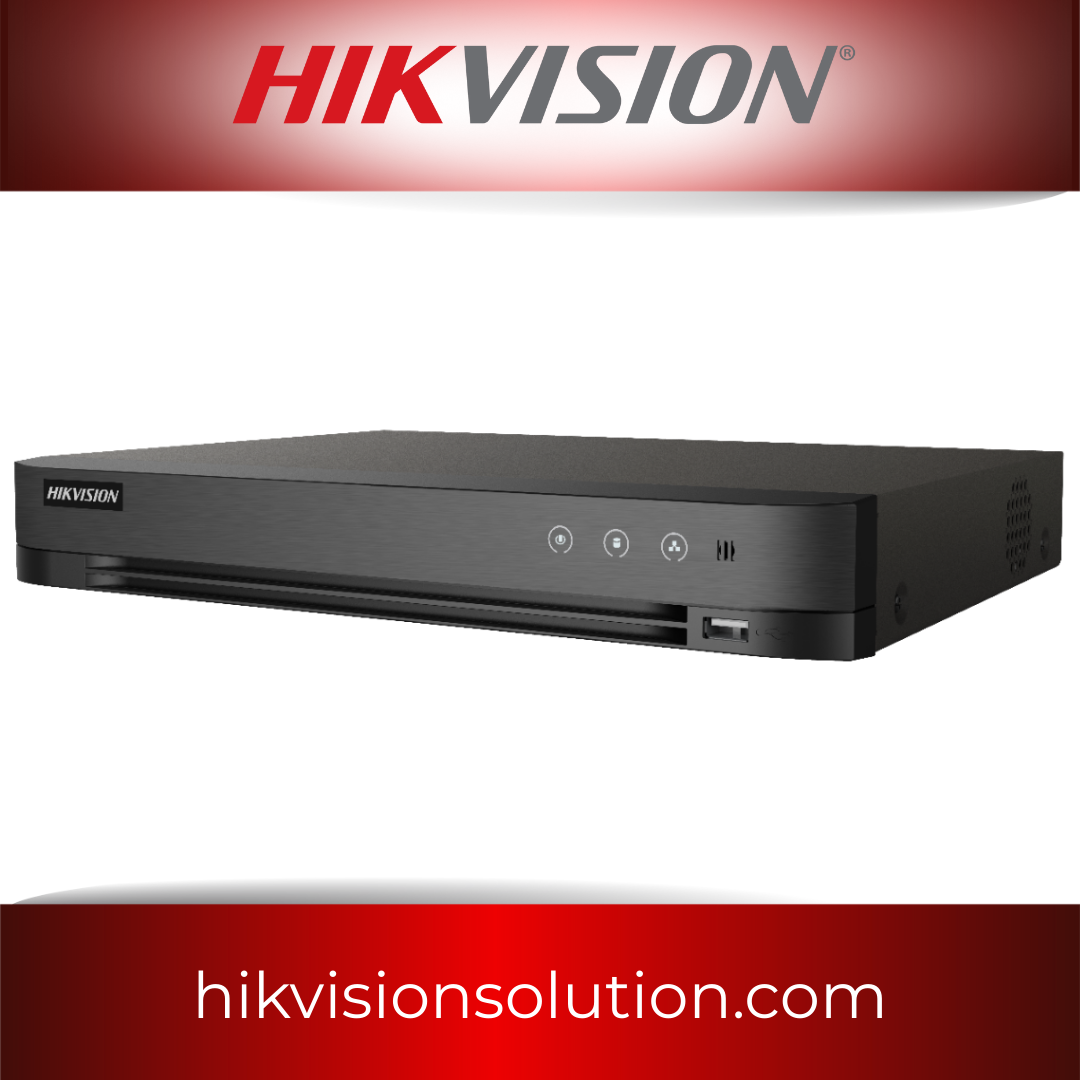

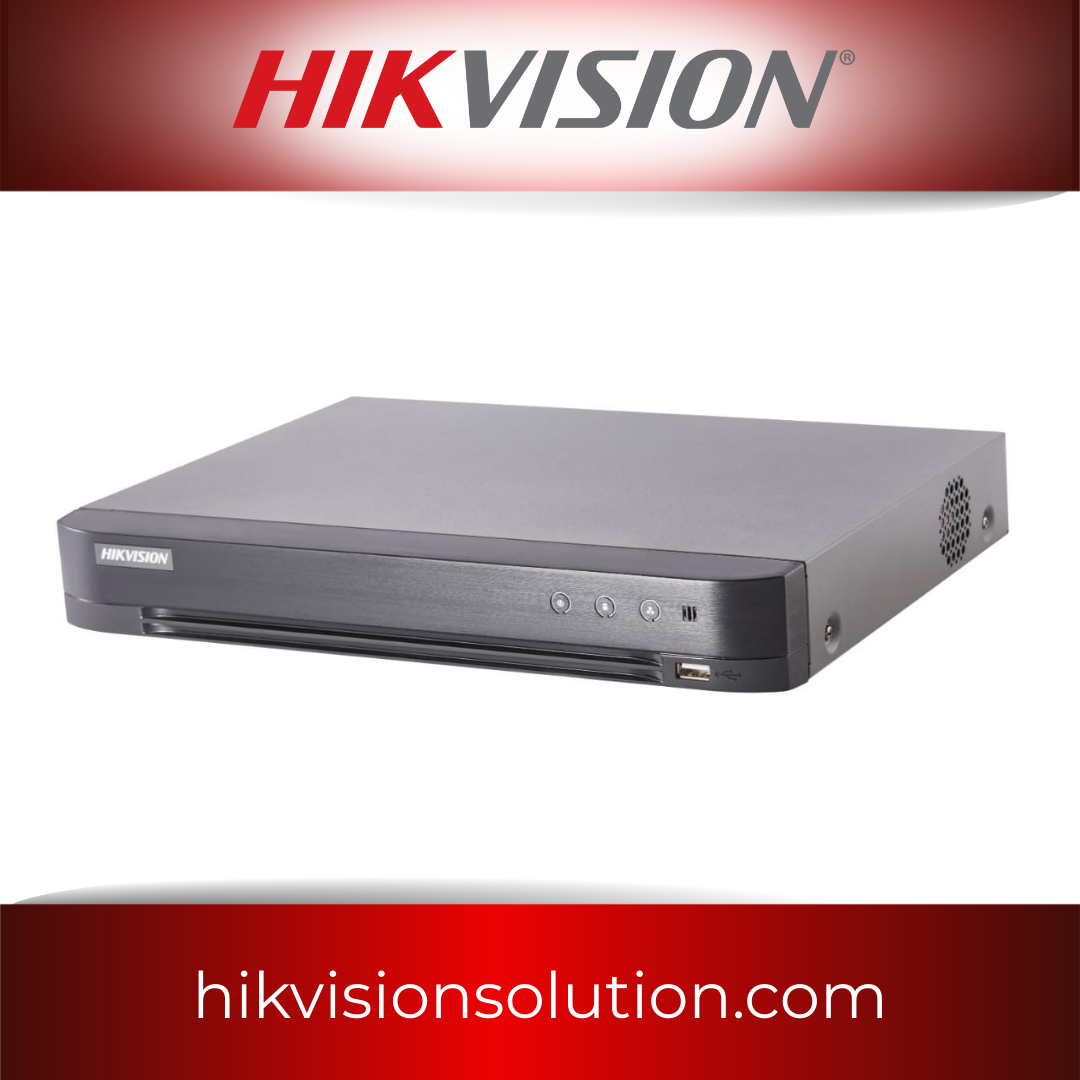

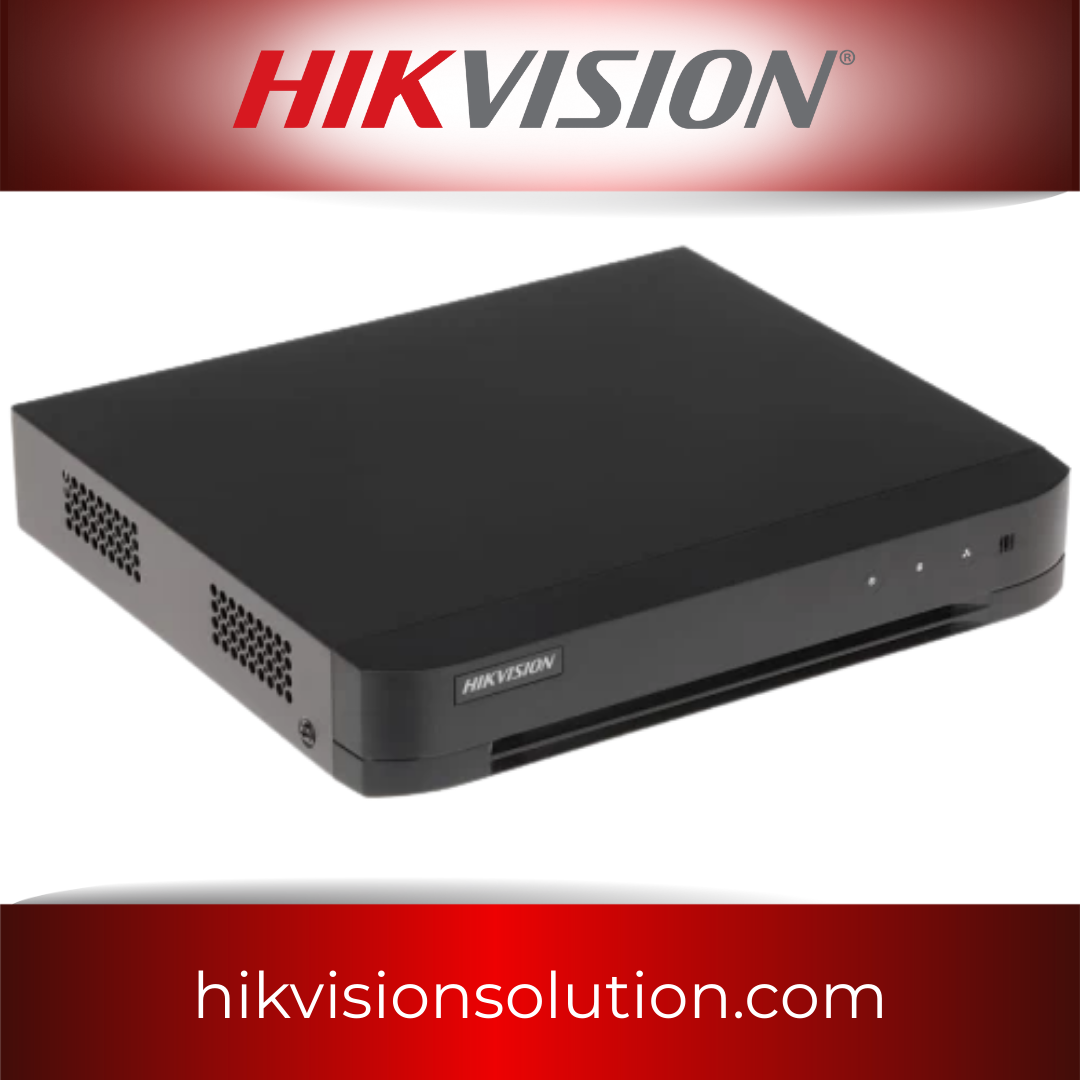

Hikvision DS-7204HQHI-K1/E 4-Channel Turbo HD DVR – H.265 Pro+ Hybrid Recorder

Name: Hikvision DS-7204HQHI-K1/E 4-Channel Turbo HD DVR – H.265 Pro+ Hybrid Recorder - Ivantech Electronic
Price: 2999.00 PHP
Availability: InStock

₱2,999.00

Category DVR Tag DVR Brand: Hikvision

Hikvision DS-7204HQHI-K1/E

Form Factor

4-channel Turbo HD DVR with single SATA drive bay (1 HDD)

Video Compression

Supports H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264 with dual-stream capability

Encoding Resolutions & Frame Rate

Without 1080p lite mode:

4 MP lite @ 15 fps; 1080p lite, 720p, VGA, WD1, 4CIF, CIF at 25 fps (PAL) / 30 fps (NTSC)
3 MP / 1080p / 720p etc. @ 15 fps
1080p / 720p @ 15 fps; VGA, WD1, 4CIF, CIF @ 25/30 fps

With 1080p lite mode:

4 MP lite, 3 MP @ 15 fps; 1080p lite, 720p lite etc. @ 25/30 fps

Sub-stream: WD1/4CIF @ 12 fps; CIF @ 25/30 fps

Video Bitrate

Adjustable from 32 Kbps to 6 Mbps

Audio

Input: 1-channel RCA (2.0 Vp-p, 1 kΩ), or via coax cable for 4-channel analog setups
Output: 1-channel RCA (linear, 1 kΩ)
Compression: G.711u, 64 Kbps
Two-way audio supported via the first audio input channel

Analog & IP Camera Support

Analog: Supports HDTVI, AHD, HDCVI, CVBS up to 4 MP (channel 1 supports 3 MP input), using BNC interfaces; supports coaxitron connections
IP: 1 native IP channel (up to 5 CH); with Enhanced IP Mode, supports up to 2 CH (up to 6 CH total), up to 6 MP resolution, with H.265+/H.265/H.264+/H.264 support

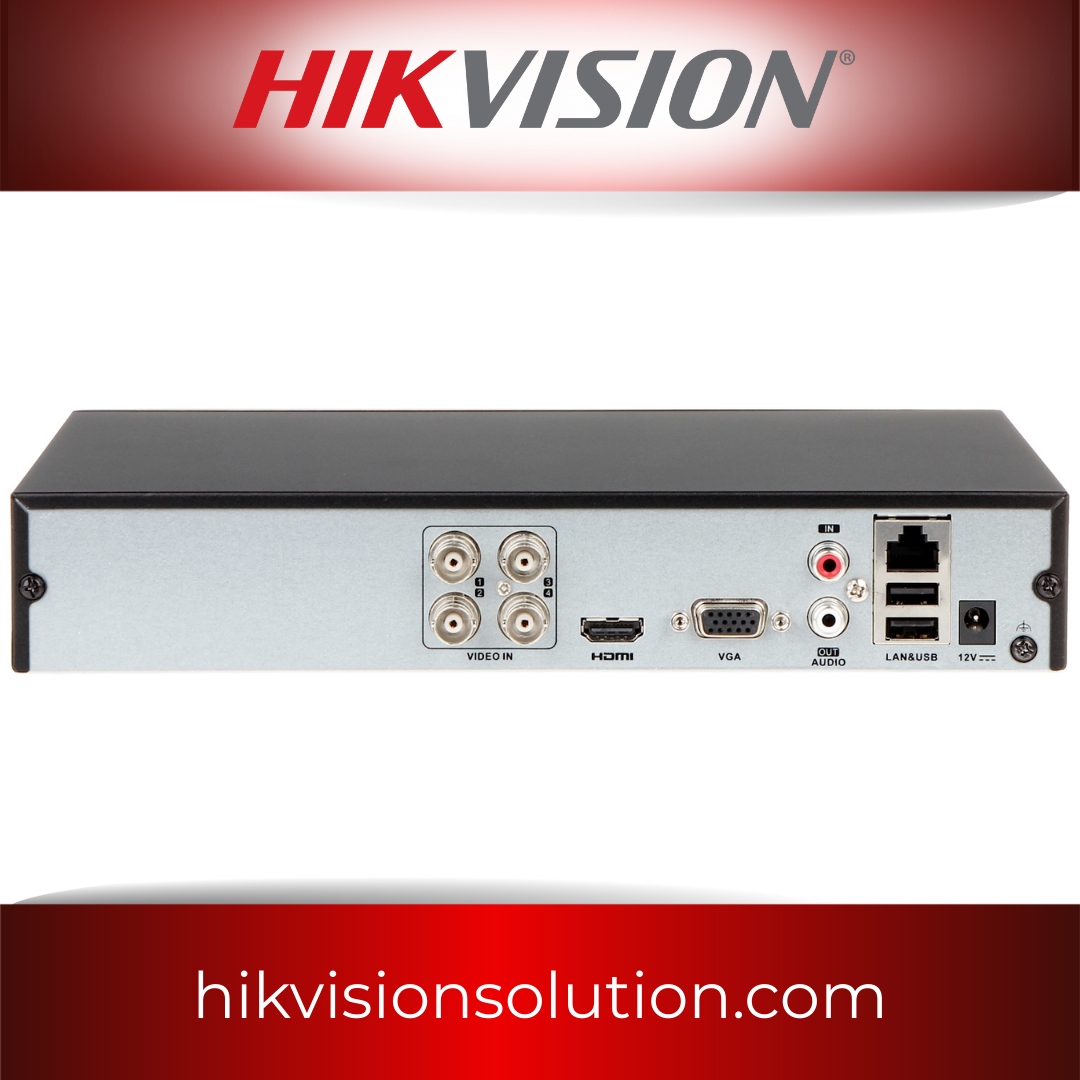

Video Output

HDMI and VGA outputs (simultaneous) supporting resolutions up to 1920×1080 @ 60 Hz, including 1280×1024, 1280×720, 1024×768

Network & Remote Access

1 × RJ45 (10/100 Mbps), supports TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, and ONVIF protocols
Up to 32 concurrent remote connections

Storage & Interfaces

1 SATA port supporting up to 10 TB HDD
2 × USB 2.0 ports for backup/export
No alarm I/O or serial interface on this model

Power, Environmental & Physical Specs

Power: 12 V DC; power consumption ≤ 5 W (without HDD)
Operating temperature: −10 °C to +55 °C; humidity: 10%–90%
Dimensions: 265 × 225 × 48 mm (10.4 × 8.9 × 1.9 inches); weight ≤ 1.6 kg (3.5 lb)

Store Warranty : 1 year

Manufacturing Warranty: included in the box

Store Location: G/F, Avenue Adela Building, General Maxilom Ave, Ramos, 6000 Cebu ( Google Map link here)

Delivery : Free Delivery within Cebu City ( outside Cebu can be send via Lalamove & J&T)

Can be pick up in store from 9AM to 6PM ( Monday to Saturday)

Return Policy :

INQUIRE BELOW AND WE WILL CONTACT YOU AS SOON AS POSSIBLE

The Hikvision DS-7204HQHI-K1/E is a high-performance 4-channel Turbo HD DVR built for reliability, flexibility, and efficient surveillance. Equipped with Hikvision’s advanced H.265 Pro+ compression technology, it intelligently adapts to HD-TVI, AHD, CVI, CVBS, and IP inputs—making it a versatile choice for both analog and IP-based systems.

4-channel analog inputs with support for HDTVI, AHD, CVI, and CVBS signals, plus support for up to 6 IP cameras (up to 6 MP) — ideal for hybrid camera setups.
Encoding capabilities up to 1080p at 15 fps, including support for 4 MP Lite and 3 MP recording modes (channel-specific).
Efficient storage with H.265 Pro+ compression, dual-stream support, and video bitrates ranging from 32 Kbps to 6 Mbps.
Flexible outputs: HDMI and VGA (simultaneous) with resolutions up to 1080p.
Robust network and remote features including Hik-Connect, DDNS, DHCP, UPnP, HTTPS, ONVIF, and support for up to 32 remote connections.
Expandable storage via 1 SATA drive (up to 10 TB), plus 2 USB 2.0 ports for backup.
Durable and power-efficient: Operates in temperatures from -10 °C to +55 °C with humidity tolerance of 10–90%, power consumption < 5 W (without HDD).

Key Features:

Hybrid compatibility: Works seamlessly with multiple signal types (HDTVI/AHD/CVI/CVBS/IP) for versatile deployment.
Superior video compression: H.265 Pro+ reduces storage needs dramatically while maintaining image quality.
High-definition recording: Supports up to 1080p at 15 fps and multicamera setups including IP cameras up to 6 MP.
Excellent connectivity: Dual HDMI/VGA outputs, remote access via Hik-Connect, and ONVIF support—for flexible live viewing and management.
Storage-ready: Expandable SATA interface (up to 10 TB), plus USB ports for quick data export.
Reliable build: Compact 1U form factor, low power draw (< 5 W), and wide operating conditions ensure consistent performance.

FAQs

Q: Can I connect both analog and IP cameras to this DVR?
A: Yes. It supports 4 analog channels (HDTVI, AHD, CVI, CVBS) and up to 6 IP cameras (with Enhanced IP Mode; 2-ch native) for hybrid setups.

Q: What video quality and frame rates are available?
A: Main stream supports 4 MP Lite, 3 MP, 1080p, 720p (varies by mode) at up to 15 fps; sub-stream supports lower resolutions at up to 30 fps.

Q: Is there support for remote viewing and cloud access?
A: Yes—features like Hik-Connect, DDNS, HTTPS, UPnP, and ONVIF enable robust remote access and integration capabilities.

Q: How much internal storage can I add?
A: One SATA bay supports up to 10 TB HDD per disk.

Q: What operating conditions does this unit tolerate?
A: Operates between -10 °C to +55 °C, 10–90% humidity; consumes less than 5 W without an HDD.

Q: Which video compression standards does it support?
A: Includes H.265 Pro+, H.265 Pro, H.265, H.264+/H.264 with dual-stream capability.

Q: Are dual display outputs supported?
A: Yes—simultaneous HDMI and VGA outputs up to 1080p resolution.
