Dahua DH-XVR1B04-I 4-Channel Penta-brid 1080N/720P Cooper 1U DVR – Hybrid Analog + IP, SMD Plus, AI Coding, 1 HDD/SSD, Long-Range Coax Support

Dahua DH-XVR1B04-I 4-Channel Penta-brid 1080N/720P Cooper 1U DVR – Hybrid Analog + IP, SMD Plus, AI Coding, 1 HDD/SSD, Long-Range Coax Support - Image 2

Dahua DH-XVR1B04-I 4-Channel Penta-brid 1080N/720P Cooper 1U DVR – Hybrid Analog + IP, SMD Plus, AI Coding, 1 HDD/SSD, Long-Range Coax Support - Image 3

Dahua DH-XVR1B04-I 4-Channel Penta-brid 1080N/720P Cooper 1U DVR – Hybrid Analog + IP, SMD Plus, AI Coding, 1 HDD/SSD, Long-Range Coax Support

Name: Dahua DH-XVR1B04-I 4-Channel Penta-brid 1080N/720P Cooper 1U DVR – Hybrid Analog + IP, SMD Plus, AI Coding, 1 HDD/SSD, Long-Range Coax Support - Ivantech Electronic
Price: 2999.00 PHP
Availability: InStock

₱2,999.00

Category XVR Tags #4channel, #dahua, #wizsense, #xvr Brand: Dahua

📊 Product Specifications

Specification	Detail
Analog Channels	4 (HDCVI / AHD / TVI / CVBS)
IP Channels	Up to 5 IP channels (default 1 + conversions) each up to 2 MP
Max Incoming Bandwidth	20 Mbps
Video Compression	AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Video Output	1× HDMI; 1× VGA
Audio I/O	1 in (RCA); 1 out (RCA)
Storage Interface	1 SATA port (up to 6TB)
Power Supply	12 VDC, 1.5 A
Power Consumption	< 7 W (without HDD)
Operating Temp.	–10 °C to +45 °C
Dimensions	~198.3 × 202.9 × 41.5 mm
Net Weight	~0.57 kg

🛡️ Warranty

Warranty : 1 year

Can be pick up from 9AM to 6PM ( Monday to Saturday)

Store Location: G/F, Avenue Adela Building, General Maxilom Ave, Ramos, 6000 Cebu ( Google Map link here)

Delivery : Free Delivery within Cebu City ( outside Cebu can be send via Lalamove)

INQUIRE BELOW AND WE WILL CONTACT YOU AS SOON AS POSSIBLE

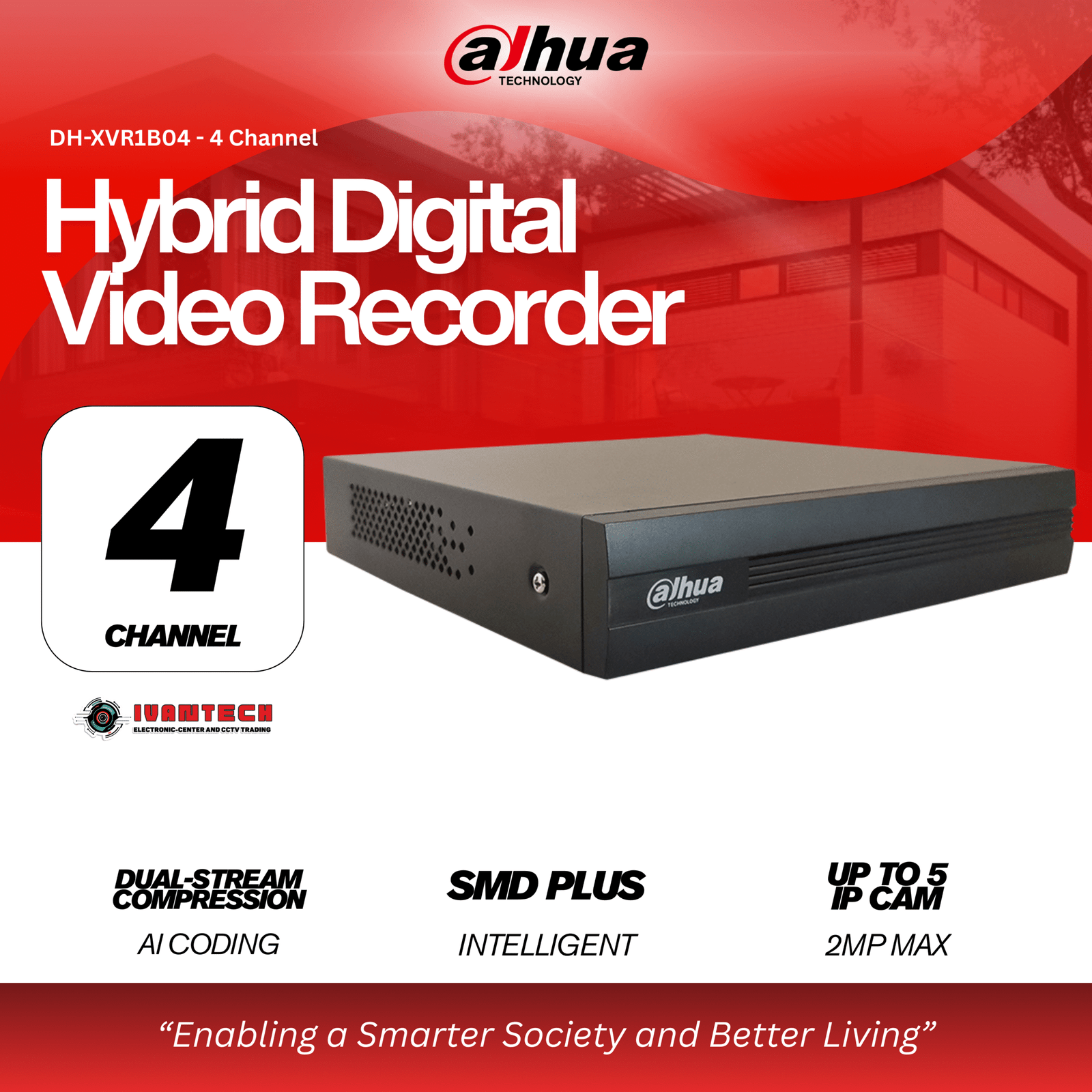

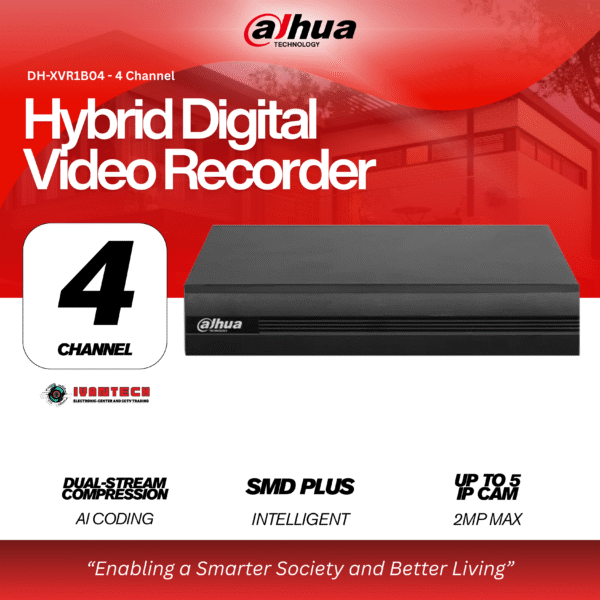

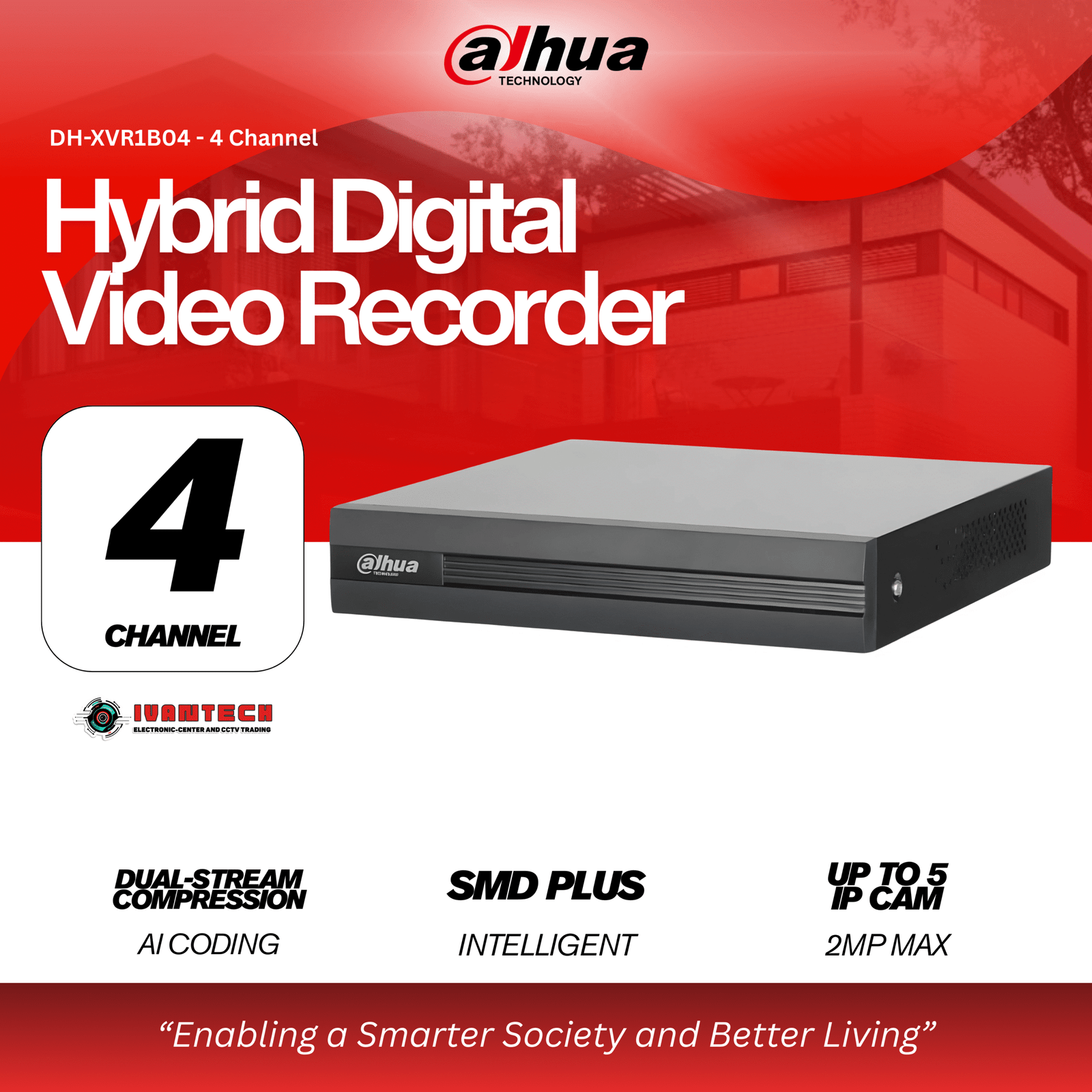

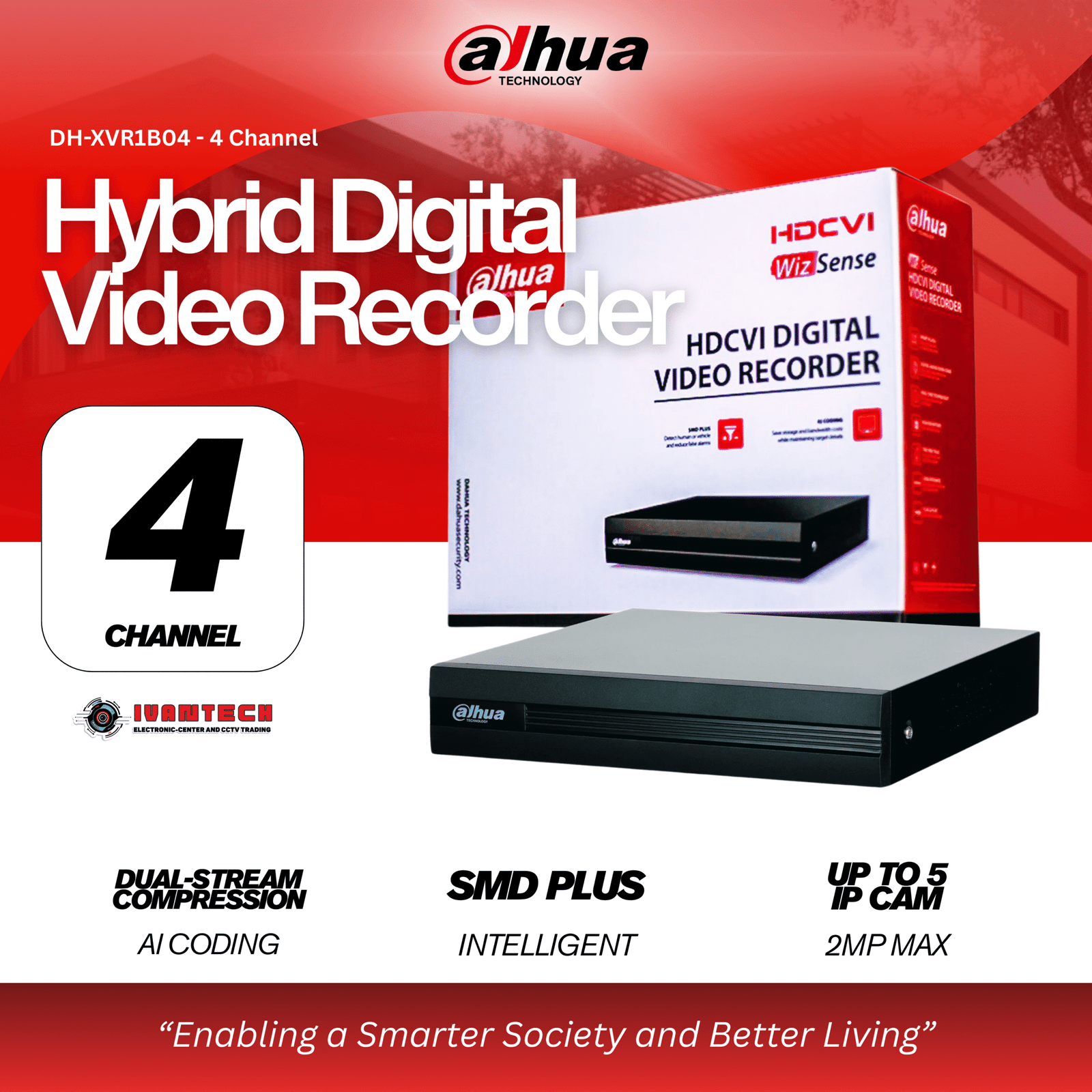

The Dahua DH-XVR1B04-I is a compact, 1U hybrid digital video recorder designed for versatile surveillance setups that use both analog (HDCVI/AHD/TVI/CVBS) and IP cameras. It supports up to 4 analog channels with SMD Plus for motion detection with human/vehicle filtering, plus up to 5 IP camera channels (each up to 2MP), making it ideal for upgrading older systems or mixed-camera installations. It uses advanced AI Coding along with smart H.265+ compression to reduce storage needs significantly while maintaining image clarity.

Built for reliability and ease of use, it works with long coaxial cable runs, has both VGA and HDMI outputs, supports remote access via mobile apps and web, and includes a single SATA slot for HDD (up to 6TB) or SSD in some variants for local storage. It’s a good fit for small shops, homes, or any location needing cost-effective hybrid video recording.

Key Features

4 analog input channels (HDCVI / AHD / TVI / CVBS) + support for up to 5 IP camera channels (2MP max each)
SMD Plus (Smart Motion Detection) to filter false alarms caused by non-relevant motion like leaves, light changes, etc.
AI Coding & H.265+ dual-stream compression – reduces storage & bandwidth needs without losing detail
Long-distance coaxial cable support for analog channels

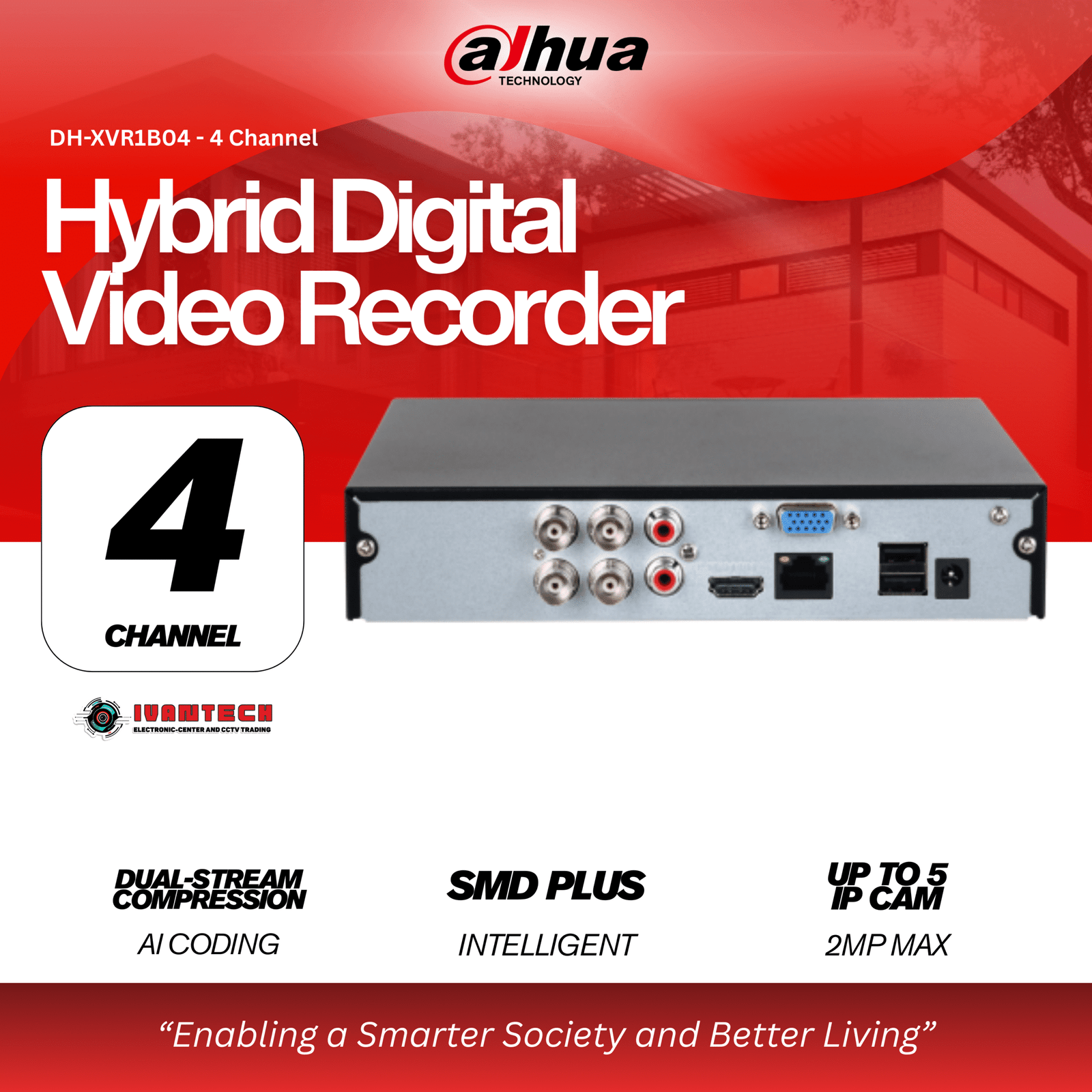

Dual video out: HDMI & VGA
Compact 1U form factor; desktop installable

Frequently Asked Questions (FAQs)

Q1: How many cameras can this unit support?
Up to 4 analog cameras (coaxial) + up to 5 IP cameras (2MP each) for inputs.

Q2: Will the IP-camera features (e.g. AI, motion detection) work on analog cameras?
Analog cameras feed through SMD Plus for human/vehicle detection, but full AI features (IVS, face, etc.) are more limited on analog channels. Adding IP channels can give more advanced functions.

Q3: What is the maximum storage capacity?
One SATA slot, supporting up to 6TB HDD; some versions use SSD.

Q4: What are the power requirements?
It uses 12 VDC, 1.5 A supply. Power consumption is under 7 W (without disk).

Q5: Can this DVR record long distance over coax cable?
Yes — it supports long transmission distances over coax for analog inputs.
